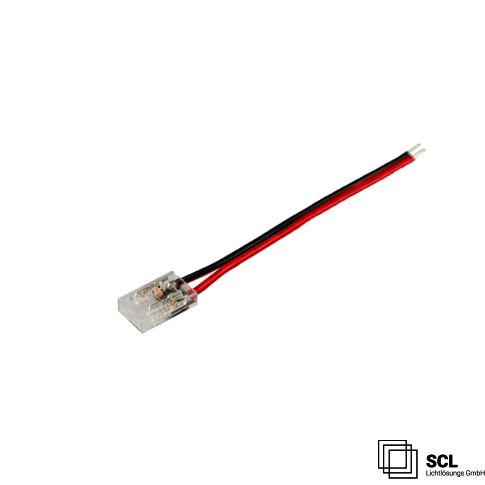

Contact cable connector universal (max. 5A) K2-28 for 2-pole IP20 flex stripes with width 8mm
In stock
Article number
114865
| Product description | Contact cable connector universal (max. 5A) K2-28 for 2-pole IP20 flex stripes with width 8mm |
|---|---|
| Article number | 114865 |
| GTIN-EAN | 9009377090493 |
| Special features | Reliable connection due to safe through-hole plating! Distance between contacts: 5.5mm, the through-hole contacts protrude 4mm into the board from the separation point - make sure that only the solder pads and no chip solder points are contacted! Max. Height of IP20 Flexband PCB + LED chip: 3mm |
| Outdoor | N |
| Weight in gramm | 4 |
| Length in mm | 16,0 |
| Width in mm | 10,0 |
| Height in mm | 4,0 |
| Guarantee in years | 2 |
