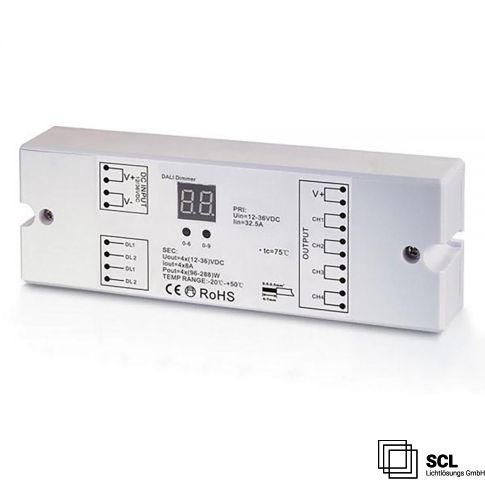

DALI DT6 1 or 4 adresses PWM dimmer, 1 or 4 channel, 12-36V 4x8A, 48V 4x4A
In stock
Article number
113202
| Product description | DALI DT6 1 or 4 adresses PWM dimmer, 1 or 4 channel, 12-36V 4x8A, 48V 4x4A |
|---|---|
| Article number | 113202 |
| GTIN-EAN | 9009377049798 |
| Special features | This dimming actuator is a DALI device type 6 controller with four separate DALI addresses (one address per channel). Optionally, the controller can be set so that only one DALI address appears on the DALI bus and all output channels then operate synchronously. Only install and connect when voltage-free! |
| Dimming Specifications | Dimmbereich 0-100% in 256 Stufen. Es können die einzelnen Kanäle von SingleColor, weissdynamischen, RGB sowie RGB+W Bändern getrennt unter jeweils einer separaten Adresse oder gemeinsam synchron unter einer Adresse angesteuert werden. |
| Nominal voltage | 12 - 48 V DC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 140 |
| Length in mm | 170,0 |
| Width in mm | 59,0 |
| Height in mm | 29,0 |
| Guarantee in years | 2 |
