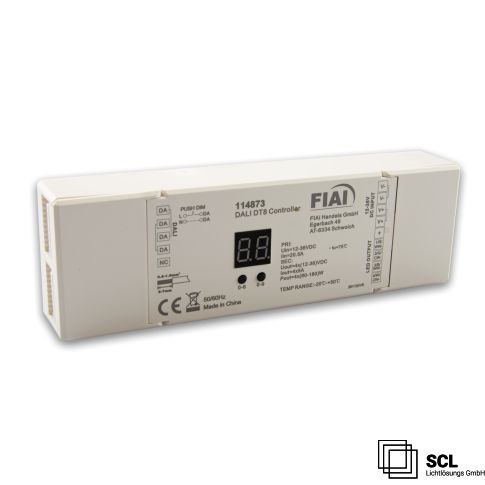

DALI DT8 1 address universal push-dim PWM dimmer, 4 channel, 12-36V 4x5A, 48V 4x3A
In stock
Article number
114873
| Product description | DALI DT8 1 address universal push-dim PWM dimmer, 4 channel, 12-36V 4x5A, 48V 4x3A |
|---|---|
| Article number | 114873 |
| GTIN-EAN | 9009377090653 |
| Special features | |Built-in DALI 2 interface, DALI DT8 device |4 in 1 DALI DT8 LED controller |4 in 1: SingleColor, CCT dynamic white, XY coordinate, RGBW can be set via the buttons |DALI DT8 device for controlling RGBW outputs or tunable white outputs via a single DALI address |Only 1 address required to control 4 outputs separately in SingleColor mode |4 channels of constant voltage output |Control of four PWM outputs via DALI device type 8 |Supports DT8 device commands, compatible with DALI masters that support DT8 commands |Configuration via DALI master USB interface |Numerical digital display for manual setting of the DALI address |Compatible with universal AC closing switches. Only install and connect when voltage-free! |
| Dimming Specifications | Dimming range 0-100% in 256 levels |
| Nominal voltage | 12 - 48 V DC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 140 |
| Length in mm | 170,0 |
| Width in mm | 53,4 |
| Height in mm | 28,0 |
| Guarantee in years | 2 |
