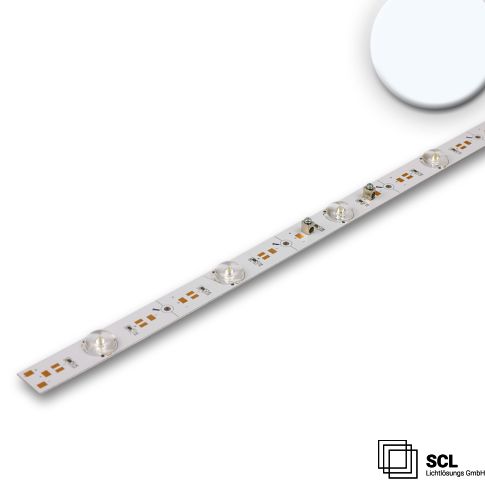

LED Circuit board Backlight 865, 1175mm, 180° lens, 24V, 16W, IP20, cold white, dimmable
In stock
Article number
116022
| Product description | LED Circuit board Backlight 865, 1175mm, 180° lens, 24V, 16W, IP20, cold white, dimmable |
|---|---|
| Article number | 116022 |
| GTIN-EAN | 9009377153945 |
| Nominal voltage | 24 V DC |
| Rated power | 16 W |
| Active power in Watt | 15,8 W |
| Luminous flux in lumen | 2250 lm |
| Color temperature | 6500K |
| CRI (RA) value | 80 |
| Beam angle | 180° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| Housing material | Copper |
| Pitch SMD (mm) | 78.33 |
| Separation point (mm) | 78,33 |
| Weight in gramm | 100 |
| Width in mm | 18,0 |
| Length in mm | 1175,0 |
| Height in mm | 8,0 |
| Lifetime L70|B10 | 50000 |
| Useful life L70|B50 | 75000 |
| Useful life L80|B50 in hours | 66000 |
| Guarantee in years | 3 |
