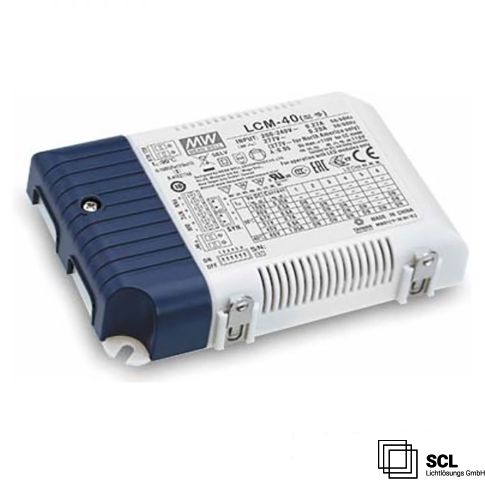

LED Constant current transformer MW LCM-40KN 350/500/600/700/900/1050mA, KNX dimmable, SELV
In stock
Article number
114189
| Product description | LED Constant current transformer MW LCM-40KN 350/500/600/700/900/1050mA, KNX dimmable, SELV |
|---|---|
| Article number | 114189 |
| GTIN-EAN | 9009377073656 |
| Special features | ATTENTION: The driver is factory set to an output constant current of 700mA. This must (e.g. for the operation of our LED panels) usually be set to 900mA by DIP switch to achieve the full power of the panel/luminaire. DIP switch settings see data sheet. |
| Rated power | 40 W |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via KNX control signal or push/close button |
| Nominal voltage | 220 - 240 V AC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 250 |
| Length in mm | 123,5 |
| Width in mm | 81,5 |
| Height in mm | 23,0 |
| SELV | Y |
| Guarantee in years | 5 |
