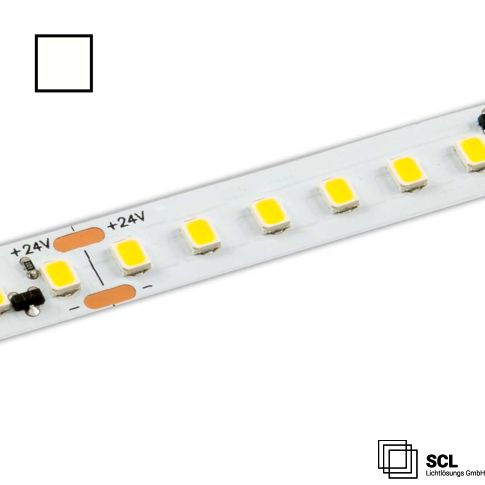

LED-Flexmodule 10 CC IC 24V, IP20, 3200 lm/m, 20 W/m, 4000K, 5 m/Rll, 140 LED/m
In stock
Article number
735358
| Product description | LED-Flexmodule 10 CC IC 24V, IP20, 3200 lm/m, 20 W/m, 4000K, 5 m/Rll, 140 LED/m |
|---|---|
| Article number | 735358 |
| GTIN-EAN | 9009377059704 |
| Special features | Separation point: 55.55 mm with 8 SMDs each | Pitch ( light point center-center): 6.94 mm | 1 unit (roll) = 5 m | Max. flex module length per infeed: 5 m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 140 g/m | Includes 3M 300LSE adhesive tape | Clean and degrease the surface before bonding! Do not remove again! | Special feature: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 20 W/m |
| Active power in Watt | 20 W/m |
| Luminous flux in lumen | 3200 lm/m |
| Color temperature | 4000K |
| CRI (RA) value | 80 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 45°C |
| Pitch SMD (mm) | 7.14 |
| Separation point (mm) | 55,55 |
| Weight in gramm | 96 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,5 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 3 |
