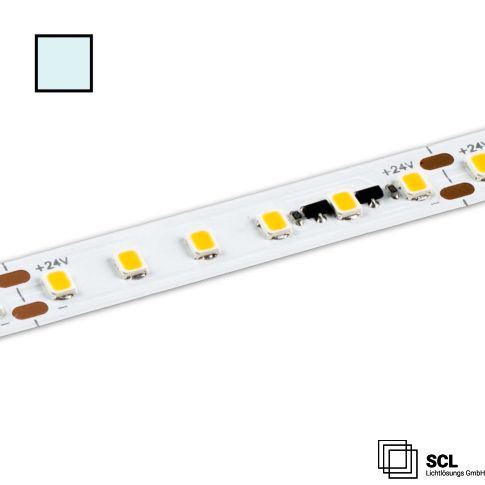

LED-Flexmodule 10 CC IC 24V, IP20, 1300 lm/m, 12 W/m, 6500K, 15 m/Rll, 120 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
731345
| Product description | LED-Flexmodule 10 CC IC 24V, IP20, 1300 lm/m, 12 W/m, 6500K, 15 m/Rll, 120 LED/m |
|---|---|
| Article number | 731345 |
| GTIN-EAN | 9009377059346 |
| Special features | Trennstelle: 50mm mit je 6 SMD | Pitch (Lichtpunkt Mitte-Mitte): 8,33mm | 1 Einheit (Rolle) = 15m | max. Flexmodullänge pro Einspeisung: 15m | Längentoleranz + Wärmeausdehnung: 1% | erforderliche Kühlmasse min. 140 gr/m | inkl. 3M 300LSE Klebeband | Untergrund vor dem Ankleben reinigen und entfetten! Nicht wieder ablösen! | BESONDERHEIT: Anschlusskabel beidseitig |
| Nominal voltage | 24 V DC |
| Rated power in Watt | 12 W/m |
| Active power in Watt | 12 W/m |
| Luminous flux in lumen | 1300 lm/m |
| Color temperature | 6500K |
| CRI (RA) value | 94 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 50,00 |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Housing material | Copper |
| Weight in gramm | 444 |
| Width in mm | 10,0 |
| Length in mm | 15000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 3 |
