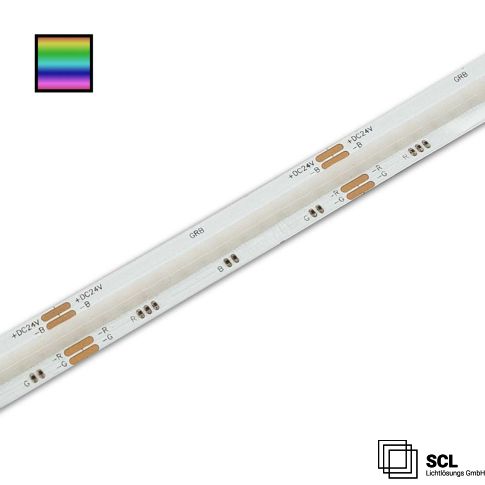

LED Flex module 10 COB CSP, 24V, IP20, 14W/m, RGB, 5m
In stock
Article number
757388
| Product description | LED Flex module 10 COB CSP, 24V, IP20, 14W/m, RGB, 5m |
|---|---|
| Article number | 757388 |
| GTIN-EAN | 9009377150197 |
| Special features | Separation point: 50mm with 42 SMD each | Pitch (light point center-center): 1,19mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 14 W/m |
| Active power in Watt | 14 W/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Pitch SMD (mm) | 3.57 |
| Separation point (mm) | 13,89 |
| Weight in gramm | 90 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,1 |
| Lifetime L70|B10 | 30000 |
| Useful life L70|B50 | 45000 |
| Useful life L80|B50 in hours | 39000 |
| Guarantee in years | 3 |
