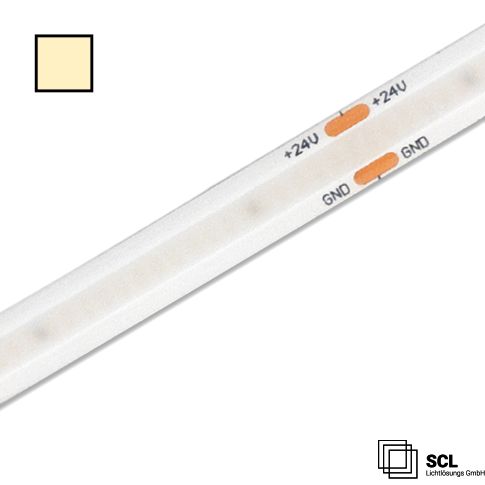

LED Flex module 10 COB CSP 90, 24V, IP68, 700lm/m, 8W/m, 3000K, 5m
In stock
Article number
757379
| Product description | LED Flex module 10 COB CSP 90, 24V, IP68, 700lm/m, 8W/m, 3000K, 5m |
|---|---|
| Article number | 757379 |
| GTIN-EAN | 9009377150142 |
| Special features | Separation point: 50mm with 24 SMD each | Pitch (light point center-center): 2,08mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before gluing! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 7,5 W/m |
| Active power in Watt | 7,5 W/m |
| Luminous flux in lumen | 675 lm/m |
| Color temperature | 3000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP68 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 2.08 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 288 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 5,5 |
| Lifetime L70|B10 | 30000 |
| Useful life L70|B50 | 45000 |
| Useful life L80|B50 in hours | 39000 |
| Guarantee in years | 3 |
