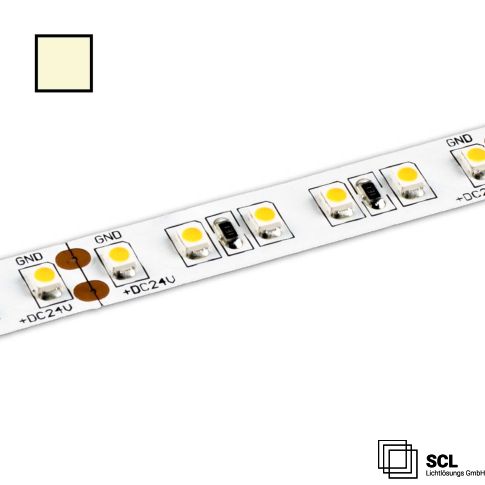

LED Flex module 10 General 80, 24V, IP20, 800lm/m, 10W/m, 2500K, 5m
Article is located in the inlet, please contact the internal sales team
Article number
720359
| Product description | LED Flex module 10 General 80, 24V, IP20, 800lm/m, 10W/m, 2500K, 5m |
|---|---|
| Article number | 720359 |
| GTIN-EAN | 9009377058899 |
| Special features | Trennstelle: 50mm mit je 6 SMD | Pitch (Lichtpunkt Mitte-Mitte): 8,33mm | 1 Einheit (Rolle) = 5m | max. Flexmodullänge pro Einspeisung: 8m | Längentoleranz + Wärmeausdehnung: 1% | erforderliche Kühlmasse min. 45 gr/m | inkl. 3M 9080A Klebeband | Untergrund vor dem Ankleben reinigen und entfetten! Nicht wieder ablösen! | BESONDERHEIT: Anschlusskabel beidseitig |
| Nominal voltage | 24 V DC |
| Rated power in Watt | 9,6 W/m |
| Active power in Watt | 8,5 W/m |
| Luminous flux in lumen | 800 lm/m |
| Color temperature | 2500K |
| CRI (RA) value | 80 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 50,00 |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Housing material | Copper |
| Weight in gramm | 100 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,5 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
