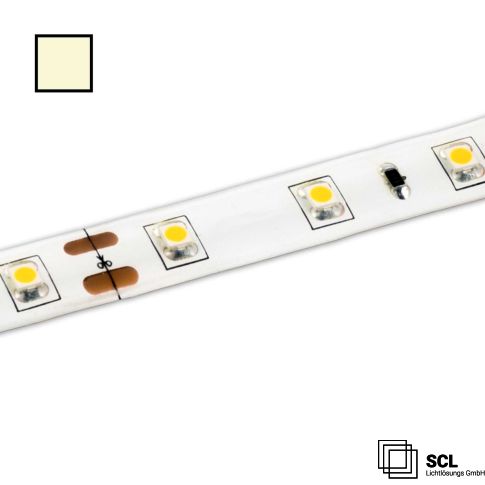

LED-Flexmodule 10 General 12V, IP66, 450 lm/m, 4.4 W/m, 3000K, 5 m/Rll, 60 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
719304
| Product description | LED-Flexmodule 10 General 12V, IP66, 450 lm/m, 4.4 W/m, 3000K, 5 m/Rll, 60 LED/m |
|---|---|
| Article number | 719304 |
| GTIN-EAN | 9009377058721 |
| Special features | Trennstelle: 50mm mit je 3 SMD | Pitch (Lichtpunkt Mitte-Mitte): 16,67mm | 1 Einheit (Rolle) = 5m | max. Flexmodullänge pro Einspeisung: 7,5m | Längentoleranz + Wärmeausdehnung: 1% | erforderliche Kühlmasse min. 45 gr/m | inkl. 3M 300LSE Klebeband | Untergrund vor dem Ankleben reinigen und entfetten! Nicht wieder ablösen! | Silikon Verguss | BESONDERHEIT: Anschlusskabel beidseitig |
| Nominal voltage | 12 V DC |
| Rated power in Watt | 4,5 W/m |
| Active power in Watt | 4,4 W/m |
| Luminous flux in lumen | 450 lm/m |
| Color temperature | 3000K |
| CRI (RA) value | 85 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 16.66 |
| Separation point (mm) | 50,00 |
| Protection class | IP66 |
| Outdoor | Y |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Copper/Silicone |
| Weight in gramm | 186 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
