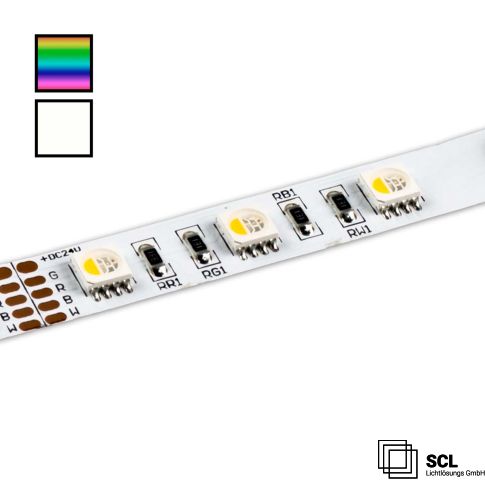

LED Flex module 10 General 85, 24V, IP20, 1050lm/m, 18W/m, RGB+6200K, 5m
In stock
Article number
727334
| Product description | LED Flex module 10 General 85, 24V, IP20, 1050lm/m, 18W/m, RGB+6200K, 5m |
|---|---|
| Article number | 727334 |
| GTIN-EAN | 9009377059155 |
| Special features | Separation point: 100 mm with 6 SMD each | Pitch ( light point center-center): 16.67 mm | 1 unit (roll) = 5 m | max. flex module length per infeed: 5 m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 g/m | incl. 3M 300LSE adhesive tape | clean and degrease the surface before bonding! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 18 W/m |
| Active power in Watt | 18 W/m |
| Luminous flux in lumen | 1050 lm/m |
| Color temperature | 6200K |
| CRI (RA) value | 86 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Pitch SMD (mm) | 16.66 |
| Separation point (mm) | 100,00 |
| Weight in gramm | 122 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
