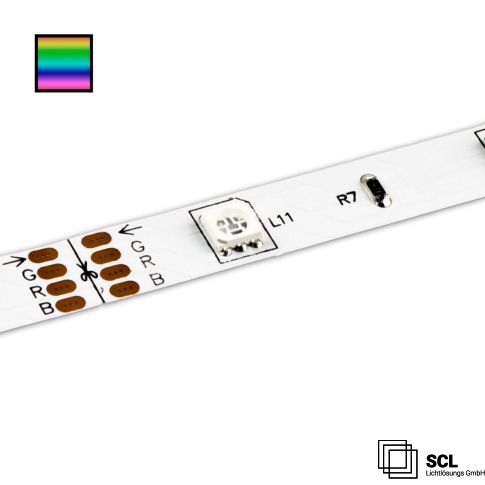

LED Flex module 10 General 85, 24V, IP20, 7W/m, RGB, 5m
In stock
Article number
720368
| Product description | LED Flex module 10 General 85, 24V, IP20, 7W/m, RGB, 5m |
|---|---|
| Article number | 720368 |
| GTIN-EAN | 9009377058974 |
| Special features | Separation point: 166.67 mm with 5 SMDs each | Pitch (light point center-center): 33.33 mm | 1 unit (roll) = 5 m | Max. flex module length per infeed: 10 m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 45 g/m | Includes 3M 9080A adhesive tape | Clean and degrease the surface before bonding! Do not remove again! | Special feature: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 7,2 W/m |
| Active power in Watt | 7 W/m |
| CRI (RA) value | 85 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Pitch SMD (mm) | 33.33 |
| Separation point (mm) | 167,00 |
| Weight in gramm | 104 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,3 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
