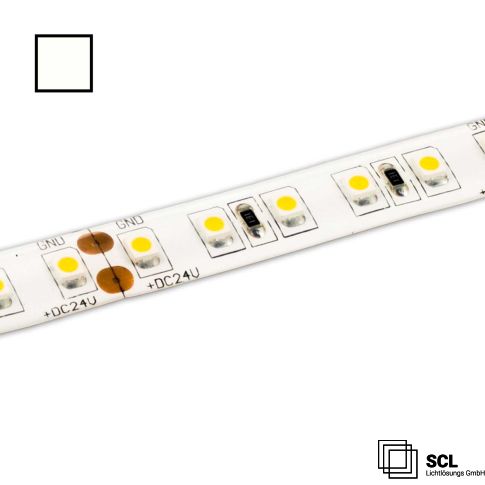

LED-Flexmodule 10 General 24V, IP66, 775 lm/m, 9,6 W/m, 4500K, 5 m/Rll, 120 LED/m
In stock
Article number
719311
| Product description | LED-Flexmodule 10 General 24V, IP66, 775 lm/m, 9,6 W/m, 4500K, 5 m/Rll, 120 LED/m |
|---|---|
| Article number | 719311 |
| GTIN-EAN | 9009377058790 |
| Special features | Separation point: 100 mm with 3 SMDs each | Pitch (light point center-center): 33.33 mm | 1 unit (roll) = 5 m | Max. flex module length per infeed: 10 m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 45 g/m | Includes 3M 300LSE adhesive tape | Clean and degrease the surface before bonding! Do not remove again! | Silicone encapsulation | Special feature: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 9,6 W/m |
| Active power in Watt | 8,5 W/m |
| Luminous flux in lumen | 775 lm/m |
| Color temperature | 4500K |
| CRI (RA) value | 85 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP66 |
| Outdoor | Y |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 196 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
