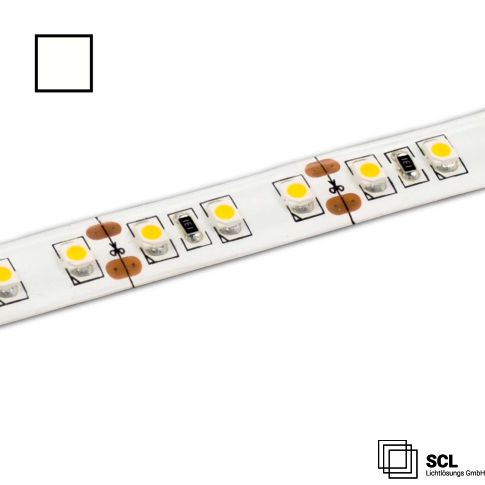

LED-Flexmodule 10 General 12V, IP66, 775 lm/m, 8,5 W/m, 4500K, 5 m/Rll, 120 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
719309
| Product description | LED-Flexmodule 10 General 12V, IP66, 775 lm/m, 8,5 W/m, 4500K, 5 m/Rll, 120 LED/m |
|---|---|
| Article number | 719309 |
| GTIN-EAN | 9009377058776 |
| Special features | Trennstelle: 25mm mit je 3 SMD | Pitch (Lichtpunkt Mitte-Mitte): 8,33mm | 1 Einheit (Rolle) = 5m | max. Flexmodullänge pro Einspeisung: 5m | Längentoleranz + Wärmeausdehnung: 1% | erforderliche Kühlmasse min. 45 gr/m | inkl. 3M 300LSE Klebeband | Untergrund vor dem Ankleben reinigen und entfetten! Nicht wieder ablösen! | Silikon Verguss | BESONDERHEIT: Anschlusskabel beidseitig |
| Nominal voltage | 12 V DC |
| Rated power in Watt | 8,5 W/m |
| Active power in Watt | 8 W/m |
| Luminous flux in lumen | 775 lm/m |
| Color temperature | 4500K |
| CRI (RA) value | 89 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 25,00 |
| Protection class | IP66 |
| Outdoor | Y |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Copper/Silicone |
| Weight in gramm | 206 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
