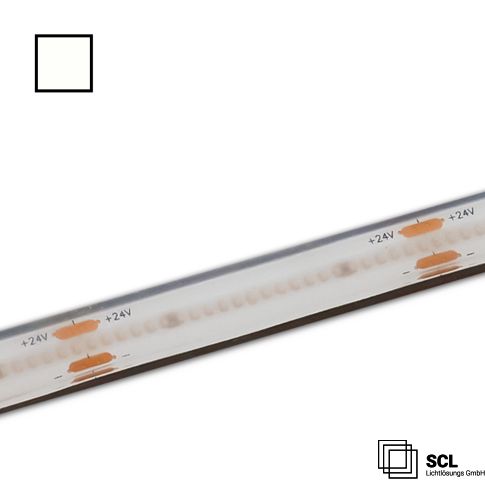

LED Flex module 10 HT 90, 24V, IP68, 1300lm/m, 14W/m, 4000K, 5m
In stock
Article number
761333
| Product description | LED Flex module 10 HT 90, 24V, IP68, 1300lm/m, 14W/m, 4000K, 5m |
|---|---|
| Article number | 761333 |
| GTIN-EAN | 9009377160349 |
| Special features | Separation point: 50mm with 24 SMD each | Pitch (light point center-center): 2,08mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before gluing! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 13,5 W/m |
| Active power in Watt | 14,4 W/m |
| Luminous flux in lumen | 1300 lm/m |
| Color temperature | 4000K |
| CRI (RA) value | 90 |
| Beam angle | 110° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 90°C |
| Weight in gramm | 320 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 36000 |
| Useful life L70|B50 | 54000 |
| Useful life L80|B50 in hours | 47000 |
| Guarantee in years | 2 |
