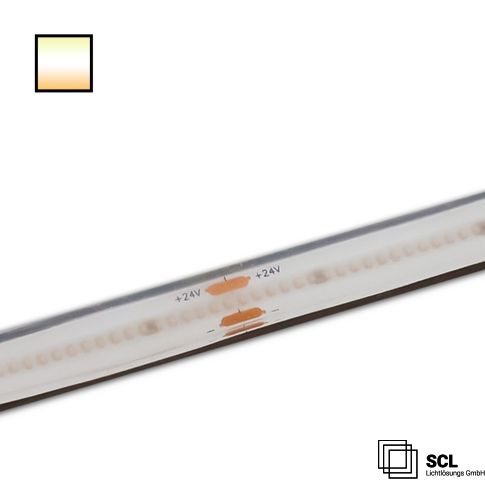

LED Flex module 10 HT 90, 24V, IP68, 725lm/m, 8W/m, 2700K-6500K, 5m
In stock
Article number
761334
| Product description | LED Flex module 10 HT 90, 24V, IP68, 725lm/m, 8W/m, 2700K-6500K, 5m |
|---|---|
| Article number | 761334 |
| GTIN-EAN | 9009377160356 |
| Special features | Separation point: 62,5mm with 32 SMD each | Pitch (light point center-center): 3,9mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 8 W/m |
| Active power in Watt | 7,5 W/m |
| Luminous flux in lumen | 725 lm/m |
| Color temperature | 2700K - 6500K |
| CRI (RA) value | 90 |
| Beam angle | 110° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 90°C |
| Weight in gramm | 175 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 36000 |
| Useful life L70|B50 | 54000 |
| Useful life L80|B50 in hours | 47000 |
| Guarantee in years | 2 |
