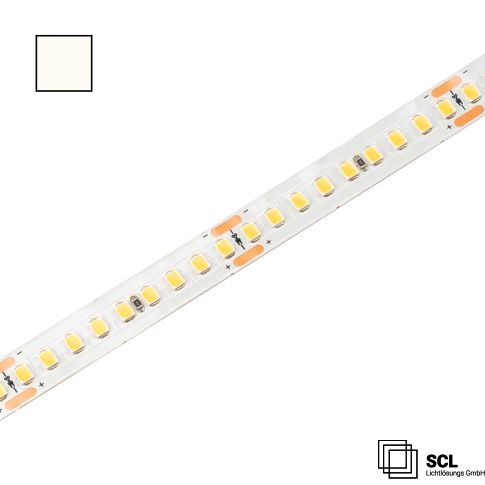

LED Flex module 10 Power 85, 24V, IP20, 1250lm/m, 6W/m, 4000K, 5m
In stock
Article number
752358
| Product description | LED Flex module 10 Power 85, 24V, IP20, 1250lm/m, 6W/m, 4000K, 5m |
|---|---|
| Article number | 752358 |
| GTIN-EAN | 9009377141515 |
| Special features | Separation point: 50mm with 9 SMD each | Pitch (light point center-center): 5,56mm | 1 unit (roll) = 5m | max. flex module length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 9080A adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 5,8 W/m |
| Active power in Watt | 5,8 W/m |
| Luminous flux in lumen | 1250 lm/m |
| Color temperature | 4000K |
| CRI (RA) value | 84 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Housing material | Copper/Silicone |
| Pitch SMD (mm) | 5.56 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 140 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 10,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
