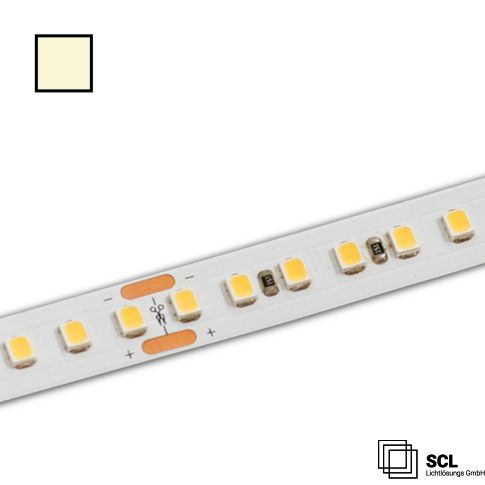

LED Flex module 10 Power 90, 48V, IP20, 2400lm/m, 17W/m, 3000K, 10m
In stock
Article number
761339
| Product description | LED Flex module 10 Power 90, 48V, IP20, 2400lm/m, 17W/m, 3000K, 10m |
|---|---|
| Article number | 761339 |
| GTIN-EAN | 9009377160370 |
| Special features | Separation point: 50mm with 8 SMD each | Pitch (light point center-center): 6,25mm | 1 unit (roll) = 10m | max. flex module length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 48 V DC |
| Rated power | 16,8 W/m |
| Active power in Watt | 16,8 W/m |
| Luminous flux in lumen | 2400 lm/m |
| Color temperature | 3000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Weight in gramm | 150 |
| Width in mm | 10,0 |
| Length in mm | 10000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
