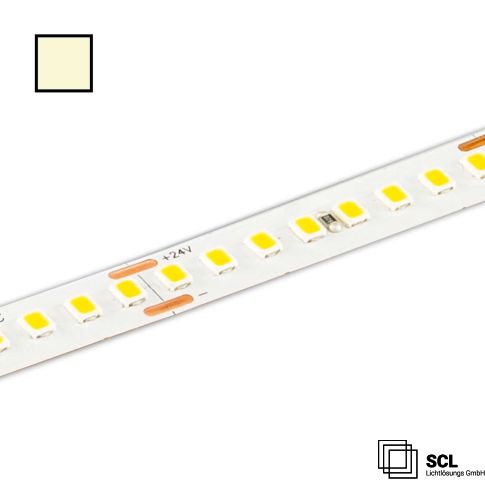

LED-Flexmodule 10 Power 24V, IP20, 1600 lm/m, 10,7 W/m, 3000K, 5 m/Rll, 160 LED/m

In stock
Article number
742352
LED-Flexmodule 10 Power 24V, IP20, 1600 lm/m, 10,7 W/m, 3000K, 5 m/Rll, 160 LED/m
742352
Prices are only visible for activated users!
More Information
Product description LED-Flexmodule 10 Power 24V, IP20, 1600 lm/m, 10,7 W/m, 3000K, 5 m/Rll, 160 LED/m
Article number 742352
GTIN-EAN 9009377077944
Special features Separation point: 50mm with 8 SMD each | Pitch (light point center-center): 6,25mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides
Nominal voltage 24 V DC
Rated power in Watt 10,7 W/m
Active power in Watt 10,7 W/m
Luminous flux in lumen 1600 lm/m
Color temperature 3000K
CRI (RA) value 93
Beam angle 120°
Dimmable Ja
Dimming Specifications dimmbar per Spannungssenke bzw. Pulsweiten- oder Pulsfrequenz modulierter Gleichspannungsversorgung von einem geeigneten Controller/Sequenzer, Dimmaktor oder Transformator
Pitch SMD (mm) 6,25
Separation point (mm) 50,00
Protection class IP20
Outdoor N
permissible ambient temperature 0°C - 40°C
Housing material Board
Weight in gramm 115
Width in mm 10,0
Length in mm 5000,0
Height in mm 1,4
Lifetime L70|B10 52000
Useful life L70|B50 78000
Useful life L80|B50 in hours 68000
Guarantee in years 2
