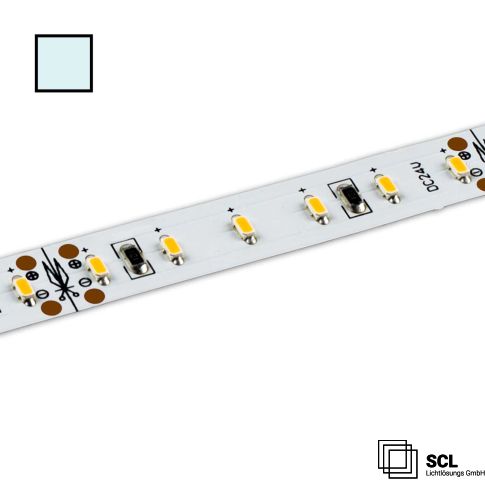

LED-Flexmodule 10 Pro 90, 24V, IP20, 1600lm/m, 15W/m, 6000K, 5m
Article is located in the inlet, please contact the internal sales team
Article number
722355
| Product description | LED-Flexmodule 10 Pro 90, 24V, IP20, 1600lm/m, 15W/m, 6000K, 5m |
|---|---|
| Article number | 722355 |
| GTIN-EAN | 9009377059032 |
| Special features | Trennstelle: 50mm mit je 6 SMD | Pitch (Chip Mitte-Mitte): 8,33mm | Lötpad-Abstand (Mitte-Mitte): 2,3mm | 1 Rolle = 5m | max. Flexmodullänge pro Einspeisung: 5m | Längentoleranz + Wärmeausdehnung: 1% | inkl. 3M VHB Klebeband | Untergrund vor dem Ankleben reinigen und entfetten! Nicht wieder ablösen! | erforderliche Kühlmasse: min. 75 gr/m |
| Nominal voltage | 24 V DC |
| Rated power in Watt | 15 W/m |
| Active power in Watt | 15 W/m |
| Luminous flux in lumen | 1600 lm |
| Color temperature | 6000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 50,00 |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | -30°C - 45°C |
| Housing material | Copper |
| Weight in gramm | 96 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,3 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
