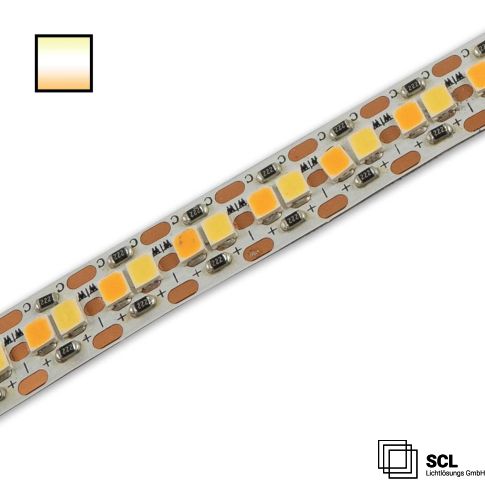

LED Flex module 10 Pro 90, 24V, IP20, 2000lm/m, 20W/m, 2300K-6000K, 5m
In stock
Article number
756398
| Product description | LED Flex module 10 Pro 90, 24V, IP20, 2000lm/m, 20W/m, 2300K-6000K, 5m |
|---|---|
| Article number | 756398 |
| GTIN-EAN | 9009377150302 |
| Special features | Separation point: 8,33mm with 2 SMD each | Pitch (light point center-center): 8,34mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 19,8 W/m |
| Active power in Watt | 19,8 W/m |
| Luminous flux in lumen | 2000 lm/m |
| Color temperature | 2300K - 6000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 45°C |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 8,33 |
| Weight in gramm | 150 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,5 |
| Lifetime L70|B10 | 54000 |
| Useful life L70|B50 | 81000 |
| Useful life L80|B50 in hours | 71000 |
| Guarantee in years | 2 |
