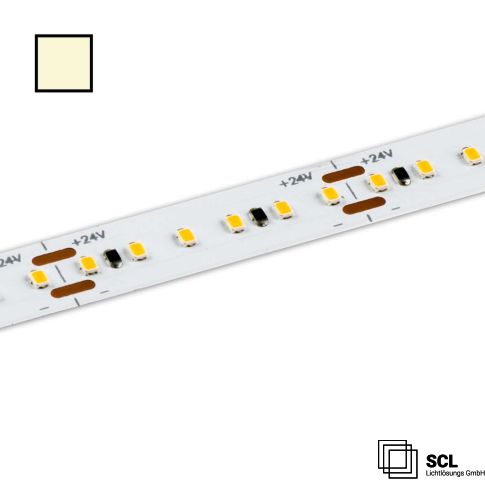

LED-Flexmodule 10 Pro 24V, IP20, 600 lm/m, 6 W/m, 3000K, 20 m/Rll, 180 LED/m

In stock
Article number
739365
LED-Flexmodule 10 Pro 24V, IP20, 600 lm/m, 6 W/m, 3000K, 20 m/Rll, 180 LED/m
739365
Prices are only visible for activated users!
More Information
Product description LED-Flexmodule 10 Pro 24V, IP20, 600 lm/m, 6 W/m, 3000K, 20 m/Rll, 180 LED/m
Article number 739365
GTIN-EAN 9009377070945
Special features Separation point: 33,33mm with 6 SMD each | Pitch (light point center-center): 5,56mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides
Nominal voltage 24 V DC
Rated power in Watt 6 W/m
Active power in Watt 6 W/m
Luminous flux in lumen 600 lm/m
Color temperature 3000K
CRI (RA) value 93
Beam angle 120°
Dimmable Ja
Dimming Specifications dimmbar per Spannungssenke bzw. Pulsweiten- oder Pulsfrequenz modulierter Gleichspannungsversorgung von einem geeigneten Controller/Sequenzer, Dimmaktor oder Transformator
Pitch SMD (mm) 5,55
Separation point (mm) 33,33
Protection class IP20
Outdoor N
permissible ambient temperature 0°C - 45°C
Housing material Board
Weight in gramm 400
Width in mm 10,0
Length in mm 20000,0
Height in mm 2,0
Lifetime L70|B10 53000
Useful life L70|B50 80000
Useful life L80|B50 in hours 70000
Guarantee in years 5
