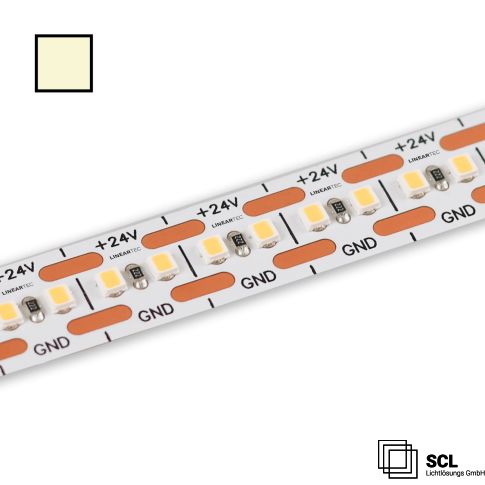

LED Flex module 10 Pro 95, 24V, IP20, 900lm/m, 10W/m, 3000K, 5m
In stock
Article number
730376
| Product description | LED Flex module 10 Pro 95, 24V, IP20, 900lm/m, 10W/m, 3000K, 5m |
|---|---|
| Article number | 730376 |
| GTIN-EAN | 9009377059247 |
| Special features | Separating point: 25 mm with 6 SMDs each | Pitch (light point center-center): 4.17 mm | 1 unit (roll) = 5 m | max. flex module length per infeed: 10m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease the surface before application! Do not remove! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 10 W/m |
| Active power in Watt | 10 W/m |
| Luminous flux in lumen | 900 lm/m |
| Color temperature | 3000K |
| CRI (RA) value | 93 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Pitch SMD (mm) | 4.17 |
| Separation point (mm) | 25,00 |
| Weight in gramm | 96 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
