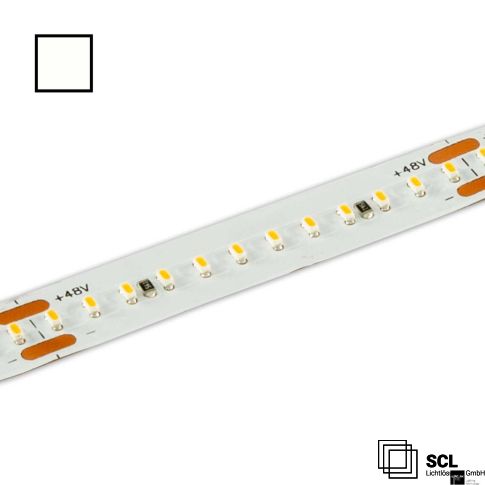

LED-Flexmodule 10 Pro48 48V, IP20, 700 lm/m, 8 W/m, 4000K, 30 m/Rll, 240 LED/m

In stock
Article number
742334
LED-Flexmodule 10 Pro48 48V, IP20, 700 lm/m, 8 W/m, 4000K, 30 m/Rll, 240 LED/m
742334
Prices are only visible for activated users!
More Information
Product description LED-Flexmodule 10 Pro48 48V, IP20, 700 lm/m, 8 W/m, 4000K, 30 m/Rll, 240 LED/m
Article number 742334
GTIN-EAN 9009377078033
Special features Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 30m | max. flex stripe length per infeed: 30m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | The connectors of the group fit: K2-210 | Special feature: connection cable on both sides
Nominal voltage 48 V DC
Rated power in Watt 8 W/m
Active power in Watt 8 W/m
Luminous flux in lumen 700 lm/m
Color temperature 4000K
CRI (RA) value 95
Beam angle 120°
Dimmable Ja
Dimming Specifications dimmbar per Spannungssenke bzw. Pulsweiten- oder Pulsfrequenz modulierter Gleichspannungsversorgung von einem geeigneten Controller/Sequenzer, Dimmaktor oder Transformator
Pitch SMD (mm) 4,17
Separation point (mm) 50,00
Protection class IP20
Outdoor N
permissible ambient temperature 0°C - 45°C
Housing material Board
Weight in gramm 514
Width in mm 10,0
Length in mm 30000,0
Height in mm 2,0
Lifetime L70|B10 53000
Useful life L70|B50 80000
Useful life L80|B50 in hours 70000
Guarantee in years 3
