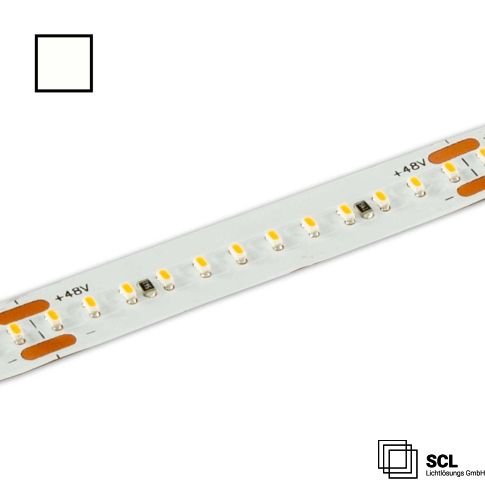

LED-Flexmodule 10 Pro48 48V, IP20, 700 lm/m, 8 W/m, 4000K, 5 m/Rll, 240 LED/m

In stock
Article number
743342
LED-Flexmodule 10 Pro48 48V, IP20, 700 lm/m, 8 W/m, 4000K, 5 m/Rll, 240 LED/m
743342
Prices are only visible for activated users!
More Information
Product description LED-Flexmodule 10 Pro48 48V, IP20, 700 lm/m, 8 W/m, 4000K, 5 m/Rll, 240 LED/m
Article number 743342
GTIN-EAN 9009377078026
Special features Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 5m | max. flex module length per infeed: 15m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides
Nominal voltage 48 V DC
Rated power 8 W/m
Active power in Watt 8 W/m
Luminous flux in lumen 700 lm/m
Color temperature 4000K
CRI (RA) value 95
Beam angle 120°
Dimmable Ja
Dimming Specifications Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer
Protection class IP20
Outdoor N
permissible ambient temperature 0°C - 45°C
Housing material Board
Pitch SMD (mm) 4.17
Separation point (mm) 50,00
Weight in gramm 82
Width in mm 10,0
Length in mm 5000,0
Height in mm 2,0
Lifetime L70|B10 53000
Useful life L70|B50 80000
Useful life L80|B50 in hours 70000
Guarantee in years 3
