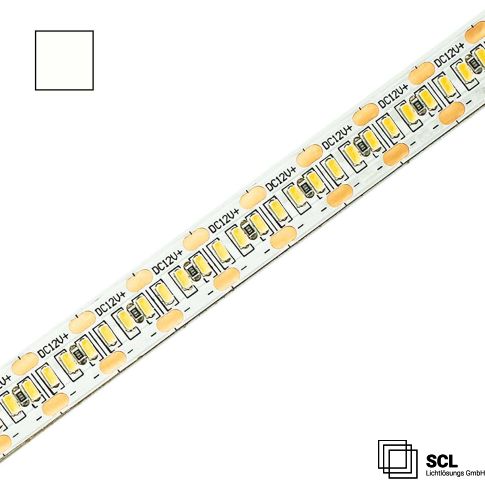

LED-Flexmodule 10 ready2plug 12V, IP20, 700 lm/m, 6 W/m, 4000K, 1,2 m/Rll, 300 LED/m
In stock
Article number
745307
| Product description | LED-Flexmodule 10 ready2plug 12V, IP20, 700 lm/m, 6 W/m, 4000K, 1,2 m/Rll, 300 LED/m |
|---|---|
| Article number | 745307 |
| GTIN-EAN | 9009377092664 |
| Special features | Separation point: 10mm with 3 SMD each | Pitch (light point center-center): 3,33mm | 1 unit (roll) = 1,2m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 12 V DC |
| Rated power | 6 W/m |
| Active power in Watt | 6 W/m |
| Luminous flux in lumen | 700 lm/m |
| Color temperature | 4000K |
| CRI (RA) value | 93 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Housing material | Copper |
| Pitch SMD (mm) | 3.33 |
| Separation point (mm) | 10,00 |
| Weight in gramm | 26 |
| Width in mm | 10,0 |
| Length in mm | 1200,0 |
| Height in mm | 1,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
