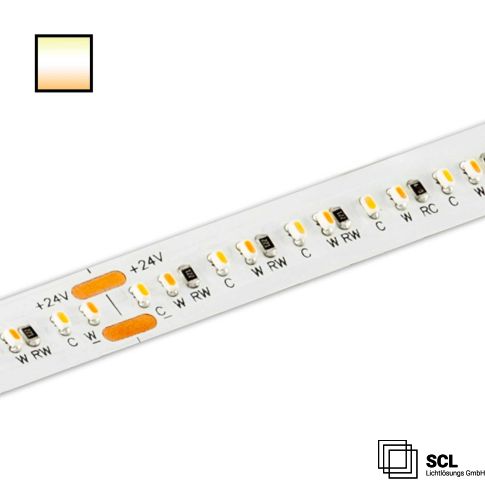

LED-Flexmodul 10 Special 2-pol. 24V, IP20, 1100 lm/m, 18,5 W/m, 1800-2700K, 5 m/Rll, 224 LED/m

Article is located in the inlet, please contact the internal sales team
Article number
742353
LED-Flexmodul 10 Special 2-pol. 24V, IP20, 1100 lm/m, 18,5 W/m, 1800-2700K, 5 m/Rll, 224 LED/m
742353
Prices are only visible for activated users!
More Information
Product description LED-Flexmodul 10 Special 2-pol. 24V, IP20, 1100 lm/m, 18,5 W/m, 1800-2700K, 5 m/Rll, 224 LED/m
Article number 742353
GTIN-EAN 9009377078163
Special features Separation point: 71,43mm with 16 SMD each | Pitch (light point center-center): 4,46mm | 1 unit (roll) = 5m | max. flex module length per infeed: 3m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides
Nominal voltage 24 V DC
Rated power in Watt 18,5 W/m
Active power in Watt 18,5 W/m
Luminous flux in lumen 1100 lm/m
Color temperature 1800K - 2700K
CRI (RA) value 95
Beam angle 120°
Dimmable Ja
Dimming Specifications ACHTUNG: Dimmbar ausschließlich per Spannungssenke (z.B. durch einen vorgeschalteten dimmbaren DC Trafo) und NICHT dimmbar per Pulsweiten modulierter Spannungsversorgung (z.B. durch einen zwischen Trafo und Flexband platzierten Sequenzer oder Dimmer)! Geeignete Trafos: Art.Nr. 112426, 112481, 113927, 113929
Pitch SMD (mm) 4.46
Separation point (mm) 71,40
Protection class IP20
Outdoor N
permissible ambient temperature 0°C - 45°C
Housing material Board
Weight in gramm 115
Width in mm 10,0
Length in mm 5000,0
Height in mm 1,8
Lifetime L70|B10 52000
Useful life L70|B50 78000
Useful life L80|B50 in hours 68000
Guarantee in years 2
