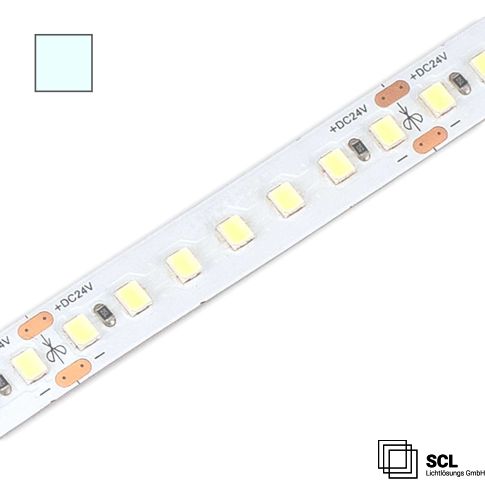

LED Flex module 10 Special 85, 24V, IP20, 14W/m, Vegetable 5000K, 5m
Article is located in the inlet, please contact the internal sales team
Article number
750368
| Product description | LED Flex module 10 Special 85, 24V, IP20, 14W/m, Vegetable 5000K, 5m |
|---|---|
| Article number | 750368 |
| GTIN-EAN | 9009377141393 |
| Special features | Separation point: 50mm with 7 SMD each | Pitch (light point center-center): 7,14mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before gluing! Do not remove again! | Silicone encapsulation | Special feature: connection cable one-sided |
| Nominal voltage | 24 V DC |
| Rated power | 14,4 W/m |
| Active power in Watt | 14,4 W/m |
| Luminous flux in lumen | 1900 lm/m |
| Color temperature | 5000K |
| CRI (RA) value | 85 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 45°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 7,71 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 160 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,4 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 3 |
