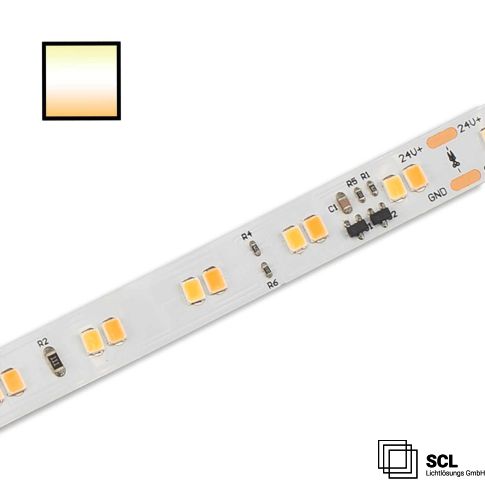

LED Flex module 10 Special 95, 24V, IP20, 1150lm/m, 14W/m, 1800K-3000K, 5m
In stock
Article number
752359
| Product description | LED Flex module 10 Special 95, 24V, IP20, 1150lm/m, 14W/m, 1800K-3000K, 5m |
|---|---|
| Article number | 752359 |
| GTIN-EAN | 9009377141539 |
| Special features | Separation point: 100mm with 6 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 9080A adhesive tape | Clean and degrease surface before gluing! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 14 W/m |
| Active power in Watt | 14 W/m |
| Luminous flux in lumen | 1160 lm/m |
| Color temperature | 1800K - 3000K |
| CRI (RA) value | 96 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 45°C |
| Housing material | Copper/Silicone |
| Pitch SMD (mm) | 16.60 |
| Separation point (mm) | 100,00 |
| Weight in gramm | 115 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 1,4 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
