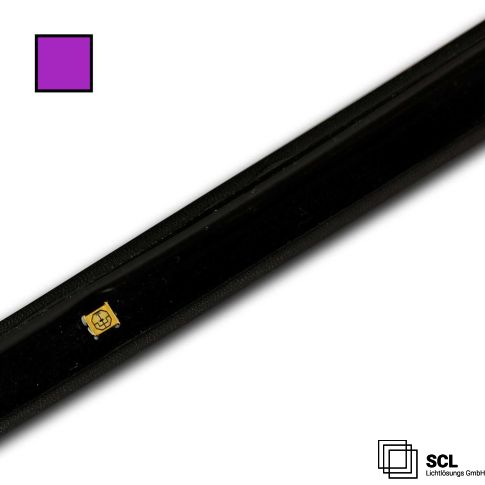

LED flex module 10 UVC 12V, IP54, 273 lm/m, 3 W, 0.58 m/Rll, 12 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
746374
| Product description | LED flex module 10 UVC 12V, IP54, 273 lm/m, 3 W, 0.58 m/Rll, 12 LED/m |
|---|---|
| Article number | 746374 |
| GTIN-EAN | 9009377092909 |
| Special features | Separation point: 27mm with 1 SMD each | Pitch (light point center-center): 83,33mm | 1 unit (roll) = 0,58m | length tolerance + thermal expansion: 1% | required cooling mass min. 75 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation |
| Nominal voltage | 12 V DC |
| Rated power | 3 W |
| Active power in Watt | 3 W |
| Luminous flux in lumen | 273 lm/m |
| CRI (RA) value | 85 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP54 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 45°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 83.00 |
| Separation point (mm) | 27,00 |
| Weight in gramm | 56 |
| Width in mm | 10,0 |
| Length in mm | 580,0 |
| Height in mm | 4,0 |
| Lifetime L70|B10 | 20000 |
| Useful life L70|B50 | 30000 |
| Useful life L80|B50 in hours | 26000 |
| Guarantee in years | 2 |
