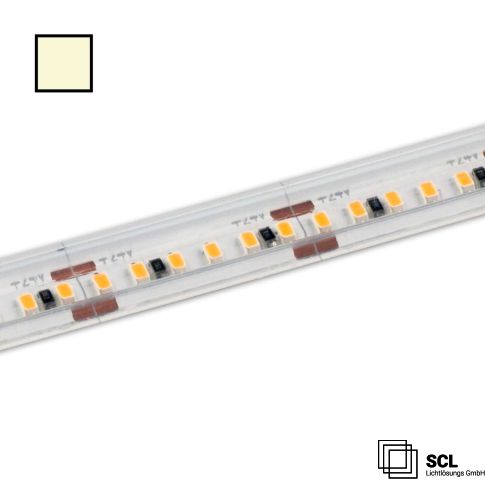

LED Flex module 11 Pro 95, 24V, IP54, 900lm/m, 10W/m, 2700K, 5m
In stock
Article number
731354
| Product description | LED Flex module 11 Pro 95, 24V, IP54, 900lm/m, 10W/m, 2700K, 5m |
|---|---|
| Article number | 731354 |
| GTIN-EAN | 9009377059421 |
| Special features | Separation point: 25 mm with 6 SMDs each | Pitch (light point center-center): 4.17 mm | 1 unit (roll) = 5 m | Max. flex module length per infeed: 5 m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 75 g/m | Includes 3M 300LSE adhesive tape | Clean and degrease the surface before bonding! Do not remove again! | Silicone encapsulation | Special feature: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 9,5 W/m |
| Active power in Watt | 9,5 W/m |
| Luminous flux in lumen | 900 lm/m |
| Color temperature | 2700K |
| CRI (RA) value | 93 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP54 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 45°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 4.17 |
| Separation point (mm) | 25,00 |
| Weight in gramm | 252 |
| Width in mm | 11,0 |
| Length in mm | 5000,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
