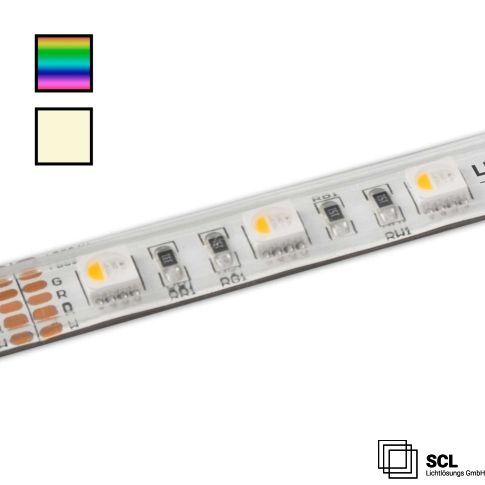

LED-Flexmodule 11,5 Proof 24V, IP67, 930 lm/m, 18 W/m, RGB+2700K, 5 m/Rll, 60 LED/m

In stock
Article number
739301
LED-Flexmodule 11,5 Proof 24V, IP67, 930 lm/m, 18 W/m, RGB+2700K, 5 m/Rll, 60 LED/m
739301
Prices are only visible for activated users!
More Information
Product description LED-Flexmodule 11,5 Proof 24V, IP67, 930 lm/m, 18 W/m, RGB+2700K, 5 m/Rll, 60 LED/m
Article number 739301
GTIN-EAN 9009377066849
Special features Separation point: 100mm with 6 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex stripe length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant
Nominal voltage 24 V DC
Rated power in Watt 18 W/m
Active power in Watt 18 W/m
Luminous flux in lumen 930 lm/m
Color temperature 2700K
CRI (RA) value 86
Beam angle 120°
Dimmable Ja
Dimming Specifications dimmbar per Spannungssenke bzw. Pulsweiten- oder Pulsfrequenz modulierter Gleichspannungsversorgung von einem geeigneten Controller/Sequenzer, Dimmaktor oder Transformator
Pitch SMD (mm) 16,66
Separation point (mm) 100,00
Protection class IP67
Outdoor N
permissible ambient temperature -20°C - 40°C
Housing material Board
Weight in gramm 240
Width in mm 11,5
Length in mm 5000,0
Height in mm 3,0
Lifetime L70|B10 25000
Useful life L70|B50 38000
Useful life L80|B50 in hours 33000
Guarantee in years 2
