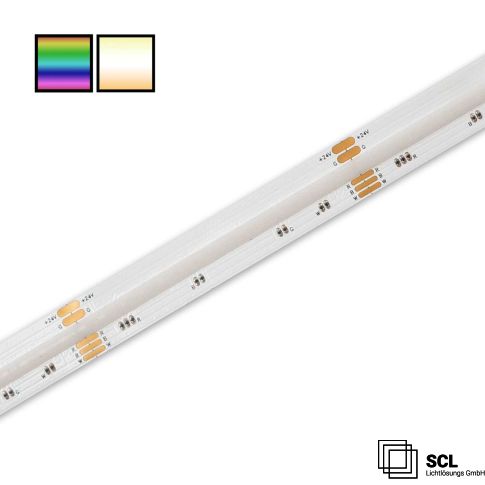

LED Flex module 12 COB CSP 90, 24V, IP20, 1250lm/m, 19W/m, RGB+3000K, 5m
In stock
Article number
757390
| Product description | LED Flex module 12 COB CSP 90, 24V, IP20, 1250lm/m, 19W/m, RGB+3000K, 5m |
|---|---|
| Article number | 757390 |
| GTIN-EAN | 9009377150203 |
| Special features | Separation point: 31.25mm with 28 SMDs each | Pitch (light point center-center): 1.12mm | 1 unit (roll) = 5m | Max. flex module length per infeed: 5m | Length Tolerance + Thermal Expansion: 1% | Required cooling mass: min. 140 g/m | incl. 3M 300LSE adhesive tape | Clean and degrease the substrate before application! Do not remove again! | SPECIAL FEATURE: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 19,2 W/m |
| Active power in Watt | 19,2 W/m |
| Luminous flux in lumen | 1250 lm/m |
| Color temperature | 3000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 40°C |
| Pitch SMD (mm) | 1,12 |
| Separation point (mm) | 31,25 |
| Weight in gramm | 220 |
| Width in mm | 12,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,1 |
| Lifetime L70|B10 | 30000 |
| Useful life L70|B50 | 45000 |
| Useful life L80|B50 in hours | 39000 |
| Guarantee in years | 3 |
