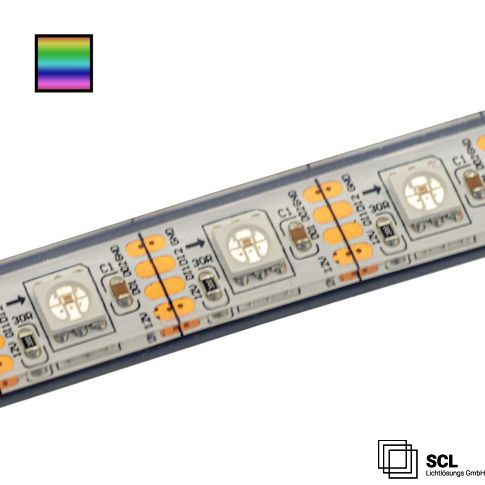

LED Flex module 12 Digital, 12V, IP68, 8W/m, RGB, 5m
In stock
Article number
746363
| Product description | LED Flex module 12 Digital, 12V, IP68, 8W/m, RGB, 5m |
|---|---|
| Article number | 746363 |
| GTIN-EAN | 9009377090202 |
| Special features | Separation point: 16,67mm with 1 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before gluing! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 12 V DC |
| Rated power | 8 W/m |
| Active power in Watt | 8 W/m |
| CRI (RA) value | 85 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP68 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 16.66 |
| Separation point (mm) | 16,66 |
| Weight in gramm | 200 |
| Width in mm | 12,0 |
| Length in mm | 5000,0 |
| Height in mm | 5,0 |
| Lifetime L70|B10 | 25000 |
| Useful life L70|B50 | 38000 |
| Useful life L80|B50 in hours | 33000 |
| Guarantee in years | 2 |
