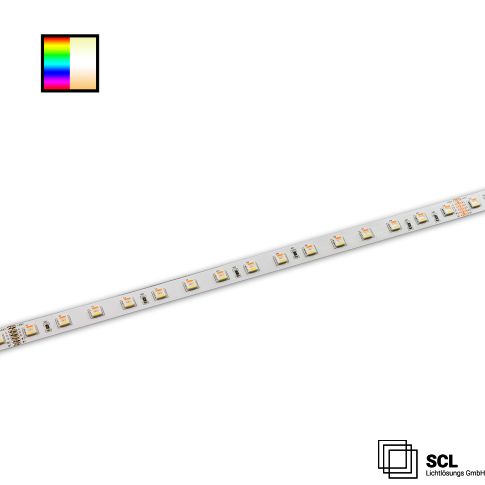

LED Flex module 12 General 80, 48V, IP20, 1350lm/m, 17W/m, RGB+2300K-6500K, 10m
Article is located in the inlet, please contact the internal sales team
Article number
761337
| Product description | LED Flex module 12 General 80, 48V, IP20, 1350lm/m, 17W/m, RGB+2300K-6500K, 10m |
|---|---|
| Article number | 761337 |
| GTIN-EAN | 9009377160301 |
| Special features | Separation point: 250mm with 15 SMD each | Pitch (light point center-center): 16,67mm | 1 unit (roll) = 10m | max. flex module length per infeed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 48 V DC |
| Rated power | 17 W/m |
| Active power in Watt | 17 W/m |
| Luminous flux in lumen | 1350 lm/m |
| Color temperature | 2300K - 6500K |
| CRI (RA) value | 80 |
| Beam angle | 120° |
| Dimmable | Ja |
| Outdoor | N |
| Weight in gramm | 215 |
| Width in mm | 12,0 |
| Length in mm | 10000,0 |
| Height in mm | 3,0 |
| Guarantee in years | 2 |
