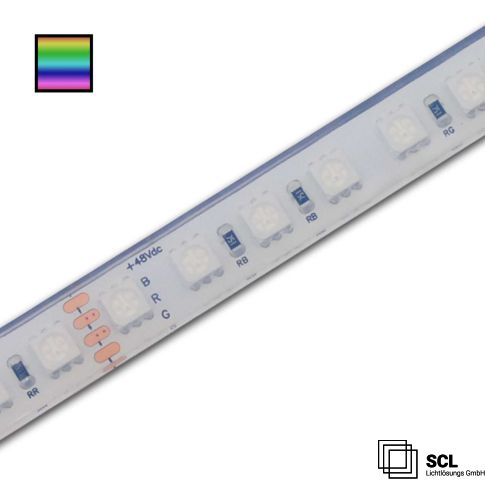

LED Flex module 12 Pro48, 48V, IP68, 14W/m, RGB, 20m
In stock
Article number
755386
| Product description | LED Flex module 12 Pro48, 48V, IP68, 14W/m, RGB, 20m |
|---|---|
| Article number | 755386 |
| GTIN-EAN | 9009377150081 |
| Special features | Separation point: 125mm with 12 SMD each | Pitch (light point center-center): 10,42mm | 1 unit (roll) = 20m | max. flex module length per infeed: 20m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Special feature: connection cable one-sided | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 48 V DC |
| Rated power | 14 W/m |
| Active power in Watt | 14 W/m |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP68 |
| Outdoor | Y |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 10.42 |
| Separation point (mm) | 125,00 |
| Weight in gramm | 90 |
| Width in mm | 12,0 |
| Length in mm | 20000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 30000 |
| Useful life L70|B50 | 45000 |
| Useful life L80|B50 in hours | 39000 |
| Guarantee in years | 3 |
