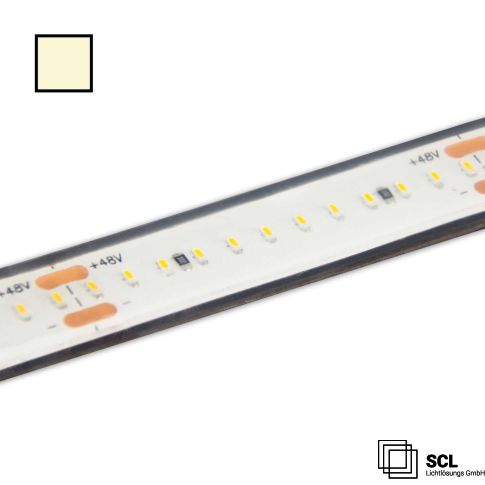

LED-Flexmodule 12 Pro48 48V, IP68, 1100 lm/m, 12.9 W/m, 3000K, 20 m/Rll, 240 LED/m

In stock
Article number
742343
LED-Flexmodule 12 Pro48 48V, IP68, 1100 lm/m, 12.9 W/m, 3000K, 20 m/Rll, 240 LED/m
742343
Prices are only visible for activated users!
More Information
Product description LED-Flexmodule 12 Pro48 48V, IP68, 1100 lm/m, 12.9 W/m, 3000K, 20 m/Rll, 240 LED/m
Article number 742343
GTIN-EAN 9009377078132
Special features Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 20m | max. flex stripe length per infeed: 20m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | The connectors of the group fit: O1-212 | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant
Nominal voltage 48 V DC
Rated power in Watt 12,9 W/m
Active power in Watt 12,9 W/m
Luminous flux in lumen 1100 lm/m
Color temperature 3000K
CRI (RA) value 95
Beam angle 120°
Dimmable Ja
Dimming Specifications dimmbar per Spannungssenke bzw. Pulsweiten- oder Pulsfrequenz modulierter Gleichspannungsversorgung von einem geeigneten Controller/Sequenzer, Dimmaktor oder Transformator
Pitch SMD (mm) 4,17
Separation point (mm) 50,00
Protection class IP68
Outdoor N
permissible ambient temperature -20°C - 45°C
Housing material Copper/Silicone
Weight in gramm 1310
Width in mm 12,0
Length in mm 20000,0
Height in mm 6,0
Lifetime L70|B10 53000
Useful life L70|B50 80000
Useful life L80|B50 in hours 70000
Guarantee in years 2
