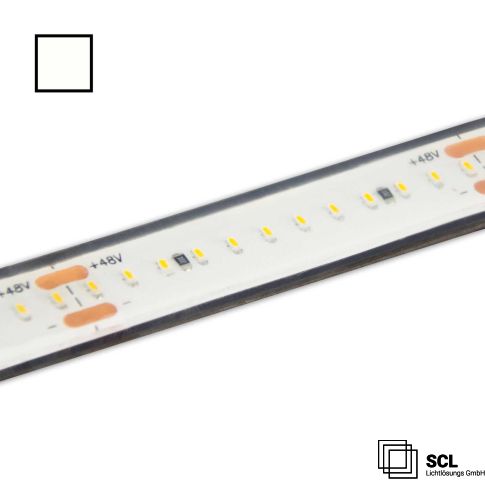

LED-Flexmodule 12 Pro48 48V, IP68, 700 lm/m, 8 W/m, 4000K, 30 m/Rll, 240 LED/m
In stock
Article number
742336
| Product description | LED-Flexmodule 12 Pro48 48V, IP68, 700 lm/m, 8 W/m, 4000K, 30 m/Rll, 240 LED/m |
|---|---|
| Article number | 742336 |
| GTIN-EAN | 9009377078095 |
| Special features | Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 30m | max. flex module length per infeed: 30m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 48 V DC |
| Rated power in Watt | 8 W/m |
| Active power in Watt | 8 W/m |
| Luminous flux in lumen | 700 lm/m |
| Color temperature | 4000K |
| CRI (RA) value | 95 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Pitch SMD (mm) | 4.17 |
| Separation point (mm) | 50,00 |
| Protection class | IP68 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 45°C |
| Housing material | Copper/Silicone |
| Weight in gramm | 2148 |
| Width in mm | 12,0 |
| Length in mm | 30000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
