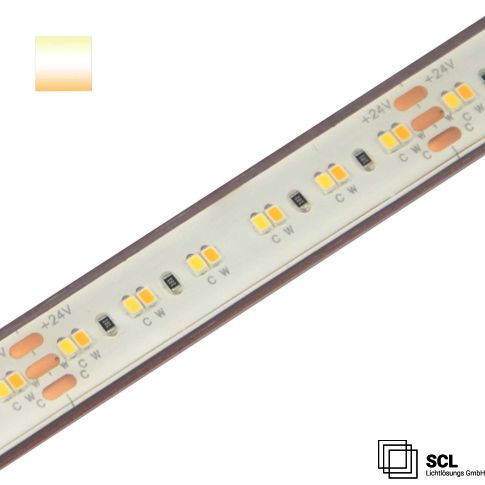

LED Flex module 12 Proof 90, 24V, IP68, 1650lm/m, 19W/m, 2300K-5000K, 5m
Article is located in the inlet, please contact the internal sales team
Article number
749387
| Product description | LED Flex module 12 Proof 90, 24V, IP68, 1650lm/m, 19W/m, 2300K-5000K, 5m |
|---|---|
| Article number | 749387 |
| GTIN-EAN | 9009377141416 |
| Special features | Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 8,34mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | incl. 3M VHB adhesive tape | Clean and degrease surface before application! Do not remove again! | Silicone encapsulation | Special feature: connection cable on both sides | Accessories included: end caps, mounting bracket and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 19 W/m |
| Active power in Watt | 19 W/m |
| Luminous flux in lumen | 1650 lm/m |
| Color temperature | 2300K - 5000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP68 |
| Outdoor | Y |
| permissible ambient temperature | -20°C - 45°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 8.33 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 450 |
| Width in mm | 12,0 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
