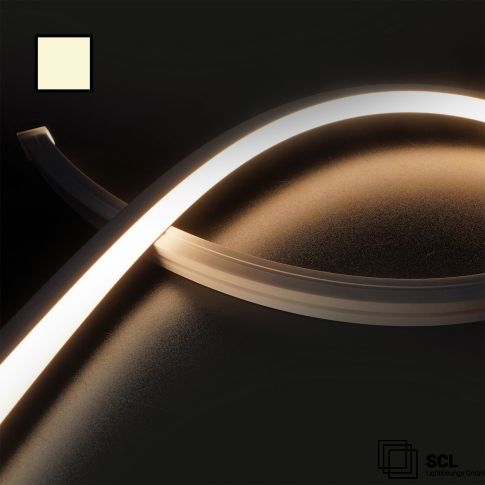

LED Flex module 13 Neon 90, 24V, IP67, 700lm/m, 12W/m, 3000K, 5m
In stock
Article number
761383
| Product description | LED Flex module 13 Neon 90, 24V, IP67, 700lm/m, 12W/m, 3000K, 5m |
|---|---|
| Article number | 761383 |
| GTIN-EAN | 9009377160516 |
| Special features | Separation point: 50mm with 7 SMD each | Pitch (light point center-center): 7,14mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | without adhesive tape! | Special feature: 30cm 2-pole sheathed cable on both sides, white, connection at the front | Note: end caps flush in width and height, vertically bendable (bending radius min. 60mm) | Accessories included: 15 mounting brackets and screws, 3 end caps with cable gland, 3 end caps without opening, incl. sealant |
| Nominal voltage | 24 V DC |
| Active power in Watt | 12 W/m |
| Luminous flux in lumen | 683 lm/m |
| Color temperature | 3000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Outdoor | N |
| Weight in gramm | 1330 |
| Width in mm | 13,0 |
| Length in mm | 5000,0 |
| Height in mm | 13,0 |
| Guarantee in years | 3 |
