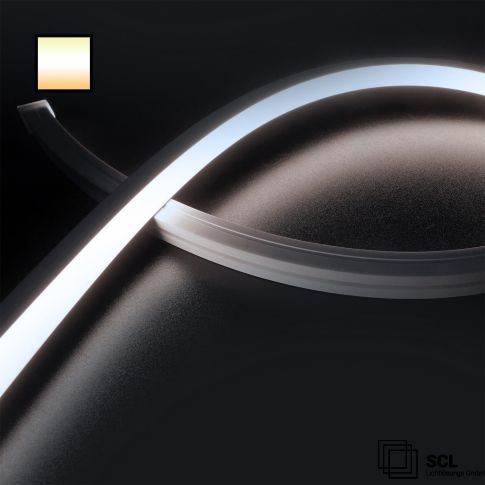

LED Flex module 13 NeonPro 90, 24V, IP67, 750lm/m, 24W/m, 1900-5000K, 5m
Article is located in the inlet, please contact the internal sales team
Article number
761387
| Product description | LED Flex module 13 NeonPro 90, 24V, IP67, 750lm/m, 24W/m, 1900-5000K, 5m |
|---|---|
| Article number | 761387 |
| GTIN-EAN | 9009377159886 |
| Special features | Separation point: 50mm with 12 SMD each | Pitch (light point center-center): 8,34mm | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | without adhesive tape! | Special feature: 30cm 2-pole sheathed cable one-sided, white, connection at the front, open stranded wire | NOTE: end caps flush in width and height, vertically bendable (bending radius min. 60mm) | Accessories included: mounting bracket |
| Nominal voltage | 24 V DC |
| Rated power | 12 W/m |
| Active power in Watt | 24 W/m |
| Luminous flux in lumen | 732 lm/m |
| Color temperature | 1900K - 5000K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Protection class | IP67 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 40°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 8.34 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 450 |
| Width in mm | 13,0 |
| Length in mm | 5000,0 |
| Height in mm | 13,0 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 3 |
