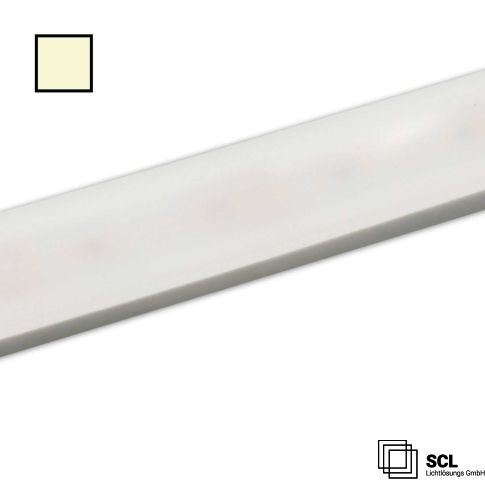

LED Flex module 13 Proof 90, 24V, IP67, 800lm/m, 10W/m, 2700K, 5m
In stock
Article number
735359
| Product description | LED Flex module 13 Proof 90, 24V, IP67, 800lm/m, 10W/m, 2700K, 5m |
|---|---|
| Article number | 735359 |
| GTIN-EAN | 9009377058639 |
| Special features | Separation point: 25 mm with 6 SMDs each | Pitch (light point center-center): 4.17 mm | 1 unit (roll) = 5 m | max. flex module length per infeed: 5 m | Length tolerance + thermal expansion: 1% | No cooling profile required | Includes 3M 4229P adhesive tape | Clean and degrease the surface before sticking! Do not remove again! | Silicone encapsulation | Special feature: Connection cable on both sides | Included accessories: End caps, mounting brackets, and sealant |
| Nominal voltage | 24 V DC |
| Rated power | 10 W/m |
| Active power in Watt | 10 W/m |
| Luminous flux in lumen | 800 lm/m |
| Color temperature | 2700K |
| CRI (RA) value | 90 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP67 |
| Outdoor | N |
| permissible ambient temperature | -30°C - 45°C |
| Housing material | Silicone |
| Pitch SMD (mm) | 4.17 |
| Separation point (mm) | 25,00 |
| Weight in gramm | 414 |
| Width in mm | 13,0 |
| Length in mm | 5000,0 |
| Height in mm | 6,0 |
| Lifetime L70|B10 | 30000 |
| Useful life L70|B50 | 45000 |
| Useful life L80|B50 in hours | 39000 |
| Guarantee in years | 2 |
