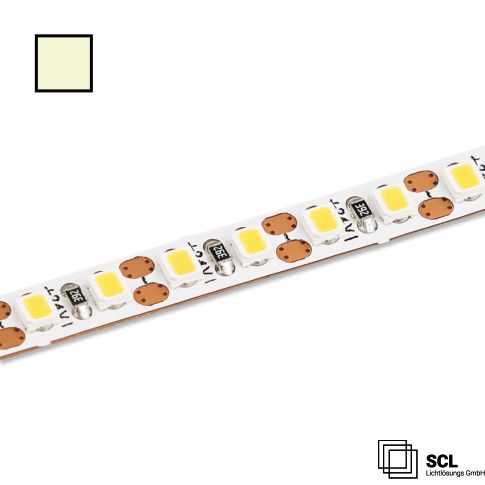

LED-Flexmodule 4 Slim 24V, IP20, 600 lm/m, 6 W/m, 2700K, 5 m/Rll, 240 LED/m
Article is located in the inlet, please contact the internal sales team
Article number
737362
| Product description | LED-Flexmodule 4 Slim 24V, IP20, 600 lm/m, 6 W/m, 2700K, 5 m/Rll, 240 LED/m |
|---|---|
| Article number | 737362 |
| GTIN-EAN | 9009377066801 |
| Special features | Separation point: 25mm with 6 SMD each | Pitch (light point center-center): 4,17mm | 1 unit (roll) = 5m | max. flex module length per infeed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 45 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power in Watt | 6 W/m |
| Active power in Watt | 6 W/m |
| Luminous flux in lumen | 600 lm/m |
| Color temperature | 2700K |
| CRI (RA) value | 93 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 4.17 |
| Separation point (mm) | 25,00 |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | -30°C - 45°C |
| Housing material | Board |
| Weight in gramm | 90 |
| Width in mm | 4,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
