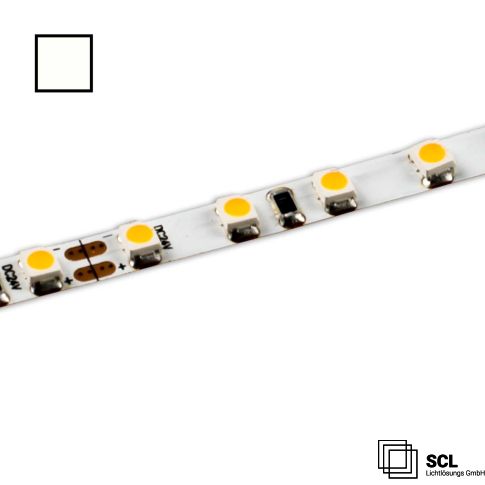

LED-Flexmodule 5 Slim 24V, IP20, 700 lm/m, 9,6 W/m, 4200K, 5 m/Rll, 120 LED/m
In stock
Article number
727352
| Product description | LED-Flexmodule 5 Slim 24V, IP20, 700 lm/m, 9,6 W/m, 4200K, 5 m/Rll, 120 LED/m |
|---|---|
| Article number | 727352 |
| GTIN-EAN | 9009377059179 |
| Special features | Separation point: 50 mm with 6 SMDs each | Pitch (light point center-center): 8.33 mm | 1 unit (roll) = 5 m | Max. flex module length per infeed: 5 m | Length tolerance + thermal expansion: 1% | Required cooling mass min. 45 g/m | Includes 3M 300LSE adhesive tape | Clean and degrease the surface before bonding! Do not remove again! | Special feature: Connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power | 9,6 W/m |
| Active power in Watt | 9,6 W/m |
| Luminous flux in lumen | 700 lm/m |
| Color temperature | 4200K |
| CRI (RA) value | 94 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via PWM (pulse width modulated DC voltage supply) via upstream controller or dimmable transformer |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 45°C |
| Pitch SMD (mm) | 8,33 |
| Separation point (mm) | 50,00 |
| Weight in gramm | 106 |
| Width in mm | 5,0 |
| Length in mm | 5000,0 |
| Height in mm | 3,0 |
| Lifetime L70|B10 | 52000 |
| Useful life L70|B50 | 78000 |
| Useful life L80|B50 in hours | 68000 |
| Guarantee in years | 2 |
