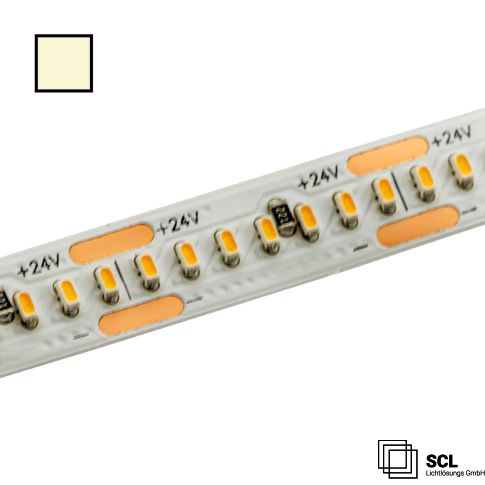

LED-Flexmodule 8 Pro 24V, IP20, 1830 lm/m, 22 W/m, 2700K, 5 m/Rll, 350 LED/m
In stock
Article number
747324
| Product description | LED-Flexmodule 8 Pro 24V, IP20, 1830 lm/m, 22 W/m, 2700K, 5 m/Rll, 350 LED/m |
|---|---|
| Article number | 747324 |
| GTIN-EAN | 9009377090059 |
| Special features | Separation point: 20mm with 7 SMD each | Pitch (light point center-center): 2,86mm | 1 unit (roll) = 5m | max. flex module length per infeed: 3m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease surface before application! Do not remove again! | Special feature: connection cable on both sides |
| Nominal voltage | 24 V DC |
| Rated power in Watt | 22 W/m |
| Active power in Watt | 22 W/m |
| Luminous flux in lumen | 1830 lm/m |
| Color temperature | 2700K |
| CRI (RA) value | 92 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | dimmbar per PWM (Pulsweiten modulierter Gleichspannungsversorgung) via vorgeschaltetem Controller oder dimmbaren Transformator |
| Pitch SMD (mm) | 2.86 |
| Separation point (mm) | 20,00 |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | 0°C - 45°C |
| Housing material | Board |
| Weight in gramm | 100 |
| Width in mm | 8,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 5 |
