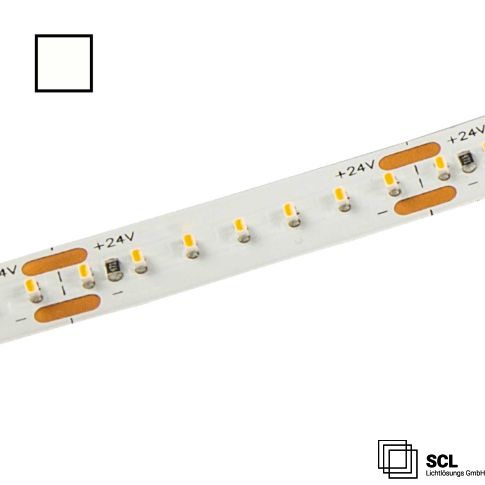

LED Flex module Solid 90, 24V, IP20, 800lm/m, 8W/m, 4000K, 5m
In stock
Article number
740342
| Product description | LED Flex module Solid 90, 24V, IP20, 800lm/m, 8W/m, 4000K, 5m |
|---|---|
| Article number | 740342 |
| GTIN-EAN | 9009377070075 |
| Special features | Separation point: 33,33mm | Pitch (chip center-center): 4,76mm | 1 roll= 5m | length tolerance 1% | max. flex module length per infeed: 10m | Clean and degrease surface before application! Do not remove again! | Cooling profile required! |
| Nominal voltage | 24 V DC |
| Rated power | 8,0 W/m |
| Active power in Watt | 8,0 W/m |
| Luminous flux in lumen | 800 lm/m |
| Color temperature | 4000K |
| CRI (RA) value | 92 |
| Beam angle | 120° |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via voltage sink or pulse width or pulse frequency modulated DC voltage supply from a suitable controller/sequencer, dimming actuator or transformer |
| Protection class | IP20 |
| Outdoor | N |
| permissible ambient temperature | -20°C - 45°C |
| Housing material | Board |
| Pitch SMD (mm) | 4.00 |
| Separation point (mm) | 33,00 |
| Weight in gramm | 100 |
| Width in mm | 10,0 |
| Length in mm | 5000,0 |
| Height in mm | 2,0 |
| Lifetime L70|B10 | 53000 |
| Useful life L70|B50 | 80000 |
| Useful life L80|B50 in hours | 70000 |
| Guarantee in years | 2 |
