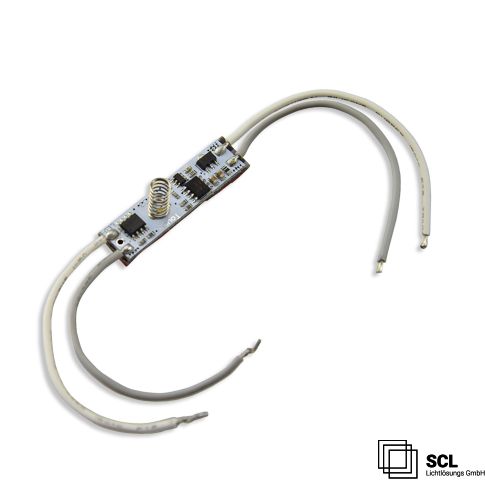

LED Mini PWM controller for installation under profile cover, 1 channel, 12-24V DC 3A
In stock
Article number
113723
| Product description | LED Mini PWM controller for installation under profile cover, 1 channel, 12-24V DC 3A |
|---|---|
| Article number | 113723 |
| GTIN-EAN | 9009377062605 |
| Special features | Power max. 3A, the touch dimmer can be installed below the cover in an aluminum profile for switching and dimming. The spring (incl. blue LED) reacts sensitively to pressure touches through the cover. Programming is retained even after power is switched off. |
| Dimming Specifications | Please use only a NON-dimmable transformer to ensure a constant DC voltage without PWM noise on the primary side. |
| Nominal voltage | 12 - 24 V DC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 5 |
| Length in mm | 50,0 |
| Width in mm | 8,0 |
| Height in mm | 10,0 |
| Guarantee in years | 2 |
