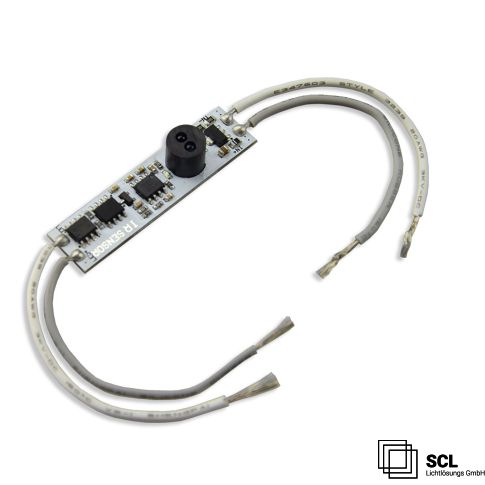

LED Mini PWM controller with wipe sensor for profiles, 1 channel, 12-24V DC 3A
In stock
Article number
113725
| Product description | LED Mini PWM controller with wipe sensor for profiles, 1 channel, 12-24V DC 3A |
|---|---|
| Article number | 113725 |
| GTIN-EAN | 9009377062643 |
| Special features | Power max. 3A, the sensor head with diameter 8mm can be placed under a transparent cover or is to be led through a corresponding drill hole in case of opal profile cover. Programming is NOT retained after power is switched off. |
| Dimming Specifications | On/Off by passing movement with the hand at a distance of max. 4cm, hold hand above or below the sensor for stepless dimming from 0-100% |
| Nominal voltage | 12 - 24 V DC |
| Protection class | IP20 |
| Housing material | Plastic |
| Weight in gramm | 5 |
| Length in mm | 45,0 |
| Width in mm | 9,1 |
| Height in mm | 8,0 |
| Guarantee in years | 2 |
