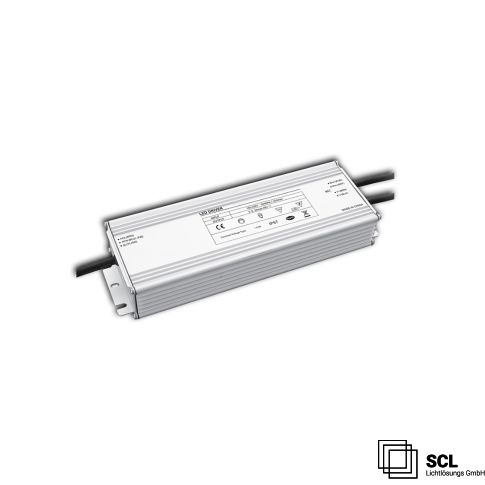

LED PWM transformer 48V/DC, 0-250W, 1-10V dimmable, IP67
Article is located in the inlet, please contact the internal sales team
Article number
114222
| Product description | LED PWM transformer 48V/DC, 0-250W, 1-10V dimmable, IP67 |
|---|---|
| Article number | 114222 |
| GTIN-EAN | 9009377074226 |
| Special features | Not suitable for use in combination with a PWM dimmer placed on the secondary side (i.e., between the transformer and the light source) |
| Rated power | 250 W |
| Dimmable | Ja |
| Dimming Specifications | Dimmable via 0-10V control signal, PWM output (1000Hz) |
| Nominal voltage | 220 - 240 V AC |
| Protection class | IP67 |
| Housing material | Aluminum |
| Weight in gramm | 950 |
| Length in mm | 251,0 |
| Width in mm | 68,0 |
| Height in mm | 38,5 |
| SELV | N |
| Guarantee in years | 5 |
